3D真空热转印机是新一代热转印技术，一机多用，可以代替烤杯机，烫画机，烤盘机，水晶机等影像设

备，可实现烤多种多样的杯子不受限制，烤盘可实现的也是多种多样。真空转印机可制作影像杯，变色杯，玻

璃杯，情侣杯，内彩杯，石板画，玻璃画，水晶热转印画，打火机，手机外壳，金属，布料等。

技术参数：

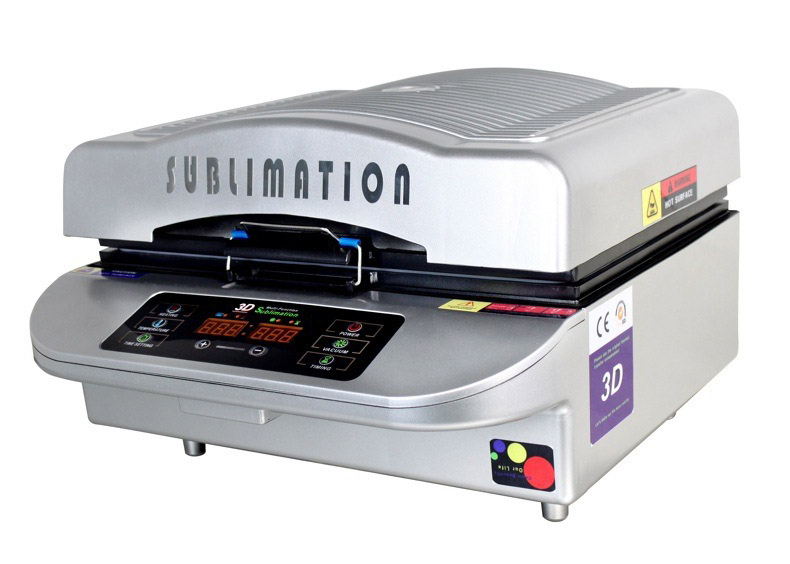

【名称】3D真空热转印机器

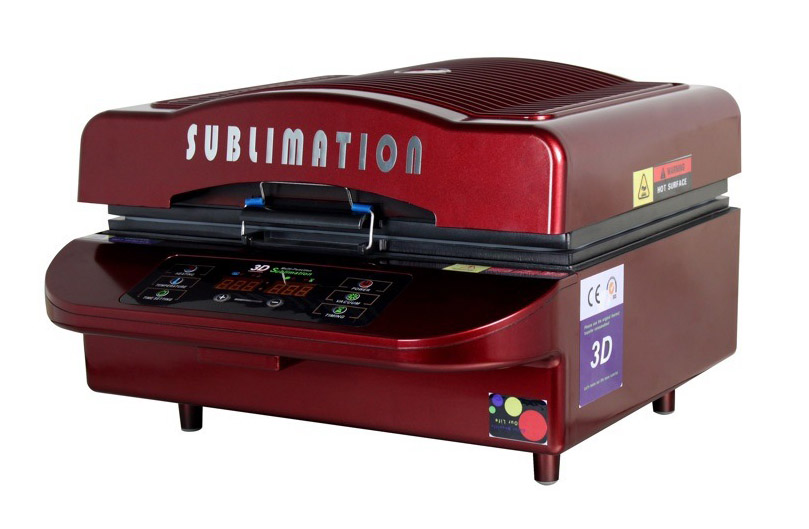

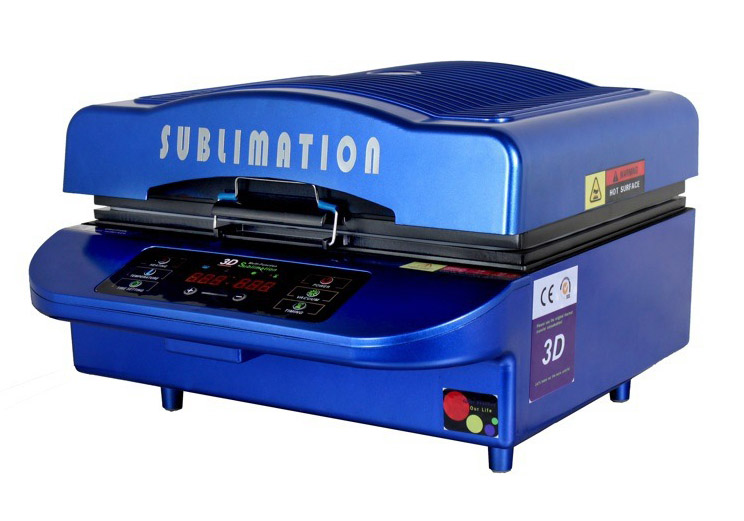

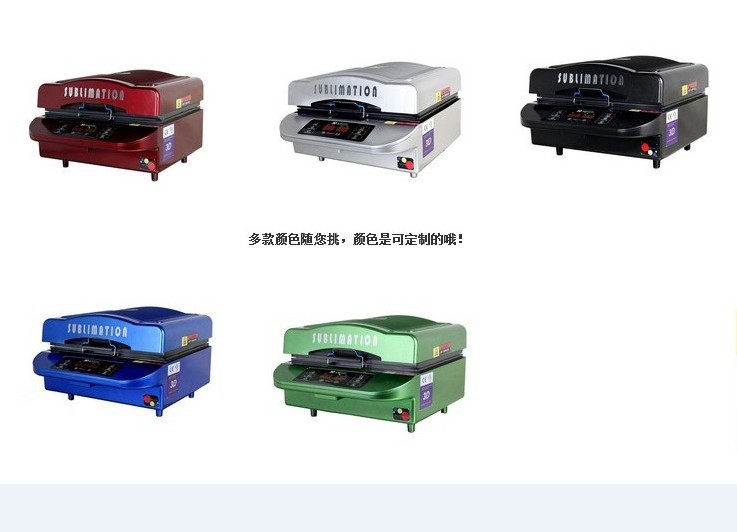

【颜色】：黑色， 红色， 银色， 绿色，蓝色 五色可选

【型号】DS-3D-01

【体积】47*59*29cm

【毛重】22KG

【转印面积】30*42*11cm

【整机功率】2800w

【制作产品】马克杯，石版画，玻璃相框，小酒杯，手机壳，衣服，鼠标垫，瓷盘，瓷板，热转印挂件等

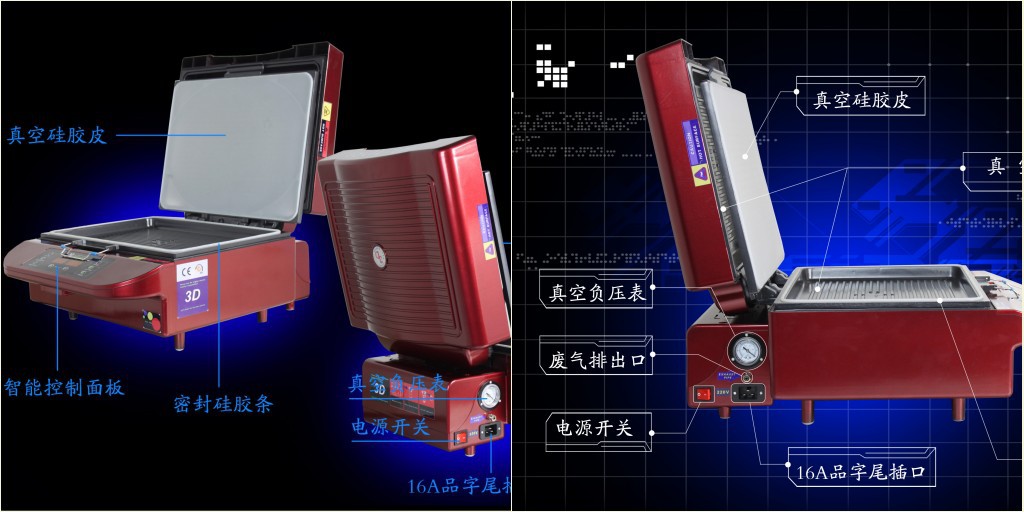

【产品特点】

【名称】3D真空热转印机器

1：该机上下加热盖板采用热辐射合金材料一次压铸成型温度恒定准确，加热更快。
Both top and bottom heating plates are made with aluminum alloy by die-casting forming. This machine has

the advantage of fast heating, constant  temperature and accurate temperature control.

2：面板数字显示，符合人体视觉习惯，更方便识别。
Humanization design. Based on the visualized and clear readings on the touch panel and digital display,

operator can operate the machine easily.

3：按键采用凸点设计，具有按键的手感，能清晰体现设置要求。
Control buttons bulge out. It is easy to fell the touch of control button, and easy to set the suitable time and

temperature as needed.

4.按键采用凸点设计，具有按键的手感，能清晰体现设置要求。
Cover of the machine is made with high temperature resistant PC plastic material. It is heat insulation, high

temperature resistance, and can withstand 120 KG without being damaged.

5：发热盖板与外壳之采用硅胶隔热设计，使其温损耗低，外壳隔热与传热更好。
Thermal insulation design. Silicone foam insulation seals are placed between aluminum heating plate and plastic

cover, thus to reduce stand-by heat loss, and no problem of being too hot on plastic cover.

6：电脑板采用双层面板,高低压电流设计更小更精致，高压电流部分加粗加宽，无论是220v还是110v都能稳

定安全使用。
Two control panels. It is more compatible with different volatges and currents, stable and safe to work with

220V and 110V.

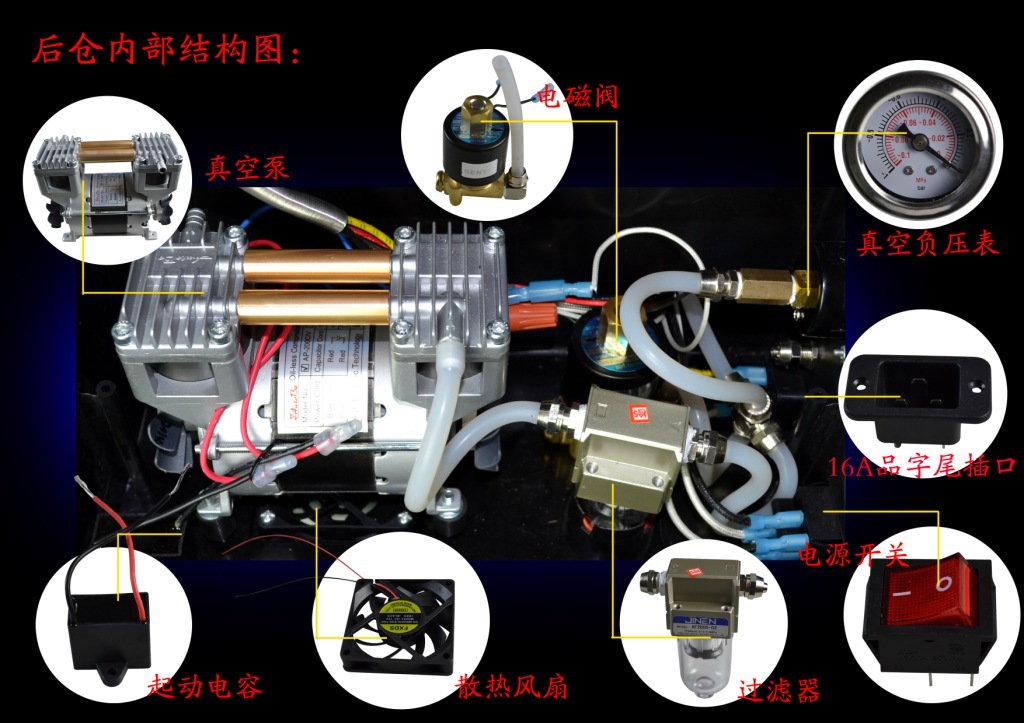

7：全机散热系统使用70mm*70mm风扇功率更大。充分保持各部件正常工作。
High-power heat-removal system. A 70mm*70mm air fan is designed at the back side of the machine to

remove heat when it is too hot, thus to keep all components work efficiently.

8：掀盖旋转柱采用精密304#不锈钢套加固，旋转更轻松更有耐用。
Connecting rod of the machine is strengthened by precision stainless steel. It is durable and convenient to

open the machine cover.

9：发热盖底部采用凸条设计加大了热量放射性。
Unique convex design of the heating tubes. It can increase heating area and the radiation of its heat energy,

thus enable the machine to work more efficiently.

10：全机加装高温保险装置温度超过250度（电脑板损坏情况下）机器自动断开！
This machine is equipped with a safety device, to prevent the machine from being superheated. When it is

more than 250 degrees Celsius, this safety device will disconnect power sources automatically.
【颜色】：黑色  红色  银色　绿色　蓝色　可选，亲在购买的时候可就需要的颜色给卖家说明。

【售后服务】

3D真空热转印机整机保修一年，保质期内由于贵方的使用不当，或者是自然环境造成的我方免费提供维修，

维修所用的材料和配件均只收成本价。
